1.8°SIZE 130mm  2-PHASE HYBRID STEPPING MOTOR(1.8°
General Specifications
Step Angle Accuracy: ±5%
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise:   80°C MAX
Ambient Temperature:-20°C ~ +50°C
Insulation Resistance:100MΩMIN ,500VDC
Dielectric Strength:500V AC 1 minute
Shaft Radial Play:0.06MAX
Shaft Axial Play:0.08MAX


Technical Datas:

Series Model	Step Angle (°)	Motor Length (mm)	Rated Current (A)	Rotor Inertia Kg.cm)	Drive Voltage (VAC)	Holding Torque (N.m Min)	Lead Wire (No.)
130BYGH2501	1.8	165	6.0	33	120-310	27	4
130BYGH2502	1.8	230	7.0	48	120-310	40	4
130BYGH2503	1.8	270	7.0	60	120-310	50	4

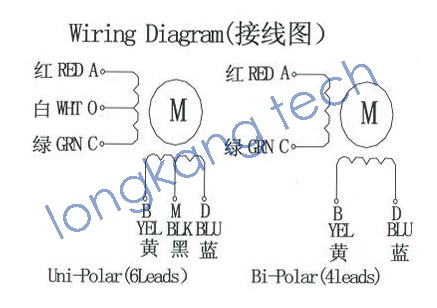

Dimension and wiring:
