86BYG 1.8° SIZE mm 2-PHASE HYBRID STEPPING MOTOR 1.8°
Description

1.8°SIZE mm  2-PHASE HYBRID STEPPING MOTOR 1.8°
General Specifications
Step Angle Accuracy: ±5%
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise:   80°C MAX
Ambient Temperature:-20°C ~ +50°C
Insulation Resistance:100MΩMIN ,500VDC
Dielectric Strength:500V AC 1 minute
Shaft Radial Play:0.06MAX
Shaft Axial Play:0.08MAX


Technical Datas:


Series
Model
 		 Step
Angle
(°)
(°)		 Motor
Length
(mm)
(mm)		 Rated
Current
(A)
(A)		 Phase
Resistance
(Ω)
(Ω)		 Phase
Inductance
(mH)
(mH)		 Holding
Torque
(N.m)
(N.m Min)		 Rotor
Inertia
(kg.cm)
 (Kg.cm²)		 Lead
Wire
(No.)
(No.)		 Motor
Weight
(kg)
(Kg)
86BYG604 1.8 63 4.0 0.8 6.3
3.5		 1.8 0.64 4 1.6
86BYG602 1.8 63 2.8 1.21 10.2 1.8 0.64 4 1.6
86BYG605 1.8 63 2.8 1.3 9.5 1.8 0.64 4 1.6
86BYG983 1.8 92 3.5 0.85 9.0 2.5 1.3
 		 Parallel 2.6
1.7 3.4 36 3 Series
86BYG905 1.8 92 5.0 0.45 5.6 3.5 1.3 4 2.6
  86BYG1301  1.8   129 6.7 0.45 4.5 4.8    1.9 4   3.8

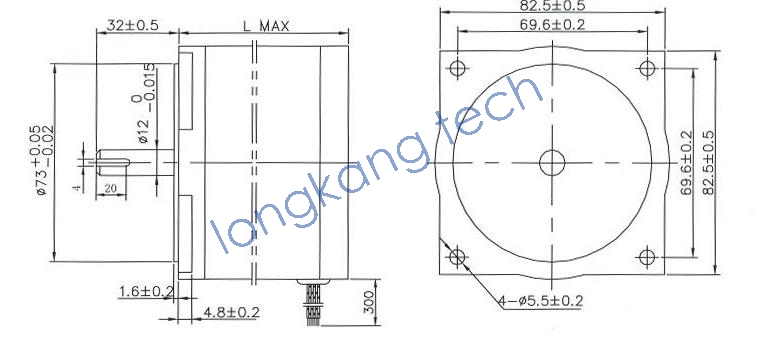

 Dimension and wiring:
