Technical Datas:

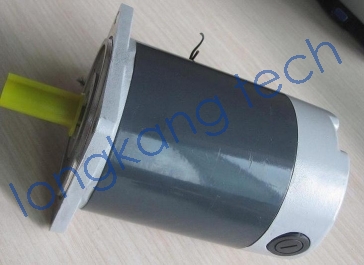

Model of Motor	80ZYT-SQ
Voltage	24VDC
Output Power	40W
Rated Current	2.1A
Rated Speed	1350RPM±10%
Rated Torque	0.28Nm
No Loading Current	≤0.5A
No Loading Speed	1650RPM±10%
Duty	Cont
Brush Life	2000h
Insulation resistance	＞20MΩ
Hi-POT test	660V/S
In. Class	B
Protection Grade	IP20
Using Temperature	﹣10℃∽﹢40℃

Dimension:
