SM1068 PM Stepper Motor
Description

Technical Datas:

Rated Voltage 5VDC
Current per phase 128 mA/Phase
Coil Resistance 39±7%/phase
No. of phase 2 phase
Step Angle 18°/100 step
Excitation Method 2 phase excitation
Drive mode Bipolar drive
Pull-out Torque More than 4gf-cm at 500pps
Max Response Frequency More than 1200 pps
Max Starting Frequency More than 900 pps
Insulation class Class E for coils
Insulation Strength 100v AC for one second
Insulation Resistance 100M DC 500V
Operating Temp range -15~+55℃

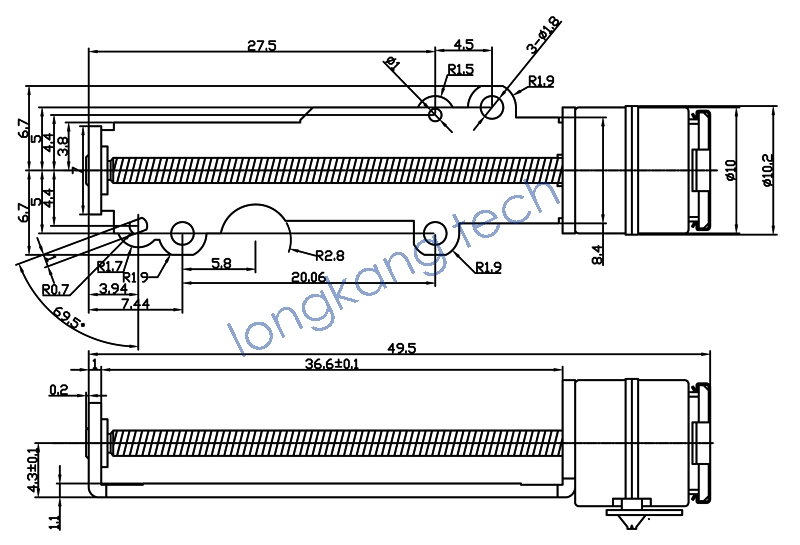

Dimension:
