HSS Center drill bits
Standard:DIN338,ANSI,JIS
Process:Fully Ground
Material:High Speed Steel,
Point Angle:118 or 135 degree
Function:used for cutting wood,metal and plastic
top quality and different sizes
Finishing: Bright White, Tin-coated
Advantages as below:
1. Multi function bit drills, saws, and reams brass, aluminum, wood and plastics.
2. Cross ground cutting edges for rapid, non clog cutting.
3. Fits any electric drill or drill press. Cuts own starting hole and any sharp in any direction tool is moved.
4.135° splint point, Dia.6 and 8mm Length: 90mm, other sizes available.
5. HSS saw drill is for milling any type of contour in thin-walled materials.
6. HSS saw drill is applicable for metal, wood, plastics
Techiinical Data

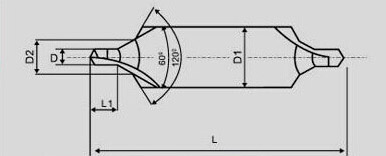

Metric Size: ( DIN333 Type B, Plain Type )
| D | D1 | D2 | L | L1 |
| 1.00 | 4.0 | 2.12 | 35.5 | 1.3 |
| 1.60 | 6.0 | 3.35 | 45.0 | 2.0 |
| 2.00 | 8.0 | 4.25 | 50.0 | 2.5 |
| 2.50 | 10.0 | 5.30 | 56.0 | 3.9 |
| 3.15 | 10.0 | 6.70 | 56.0 | 3.9 |
| 4.00 | 14.0 | 8.50 | 62.0 | 5.0 |
| 5.00 | 18.0 | 10.6 | 70.0 | 6.3 |
| 6.30 | 20.0 | 13.2 | 75.0 | 8.0 |
