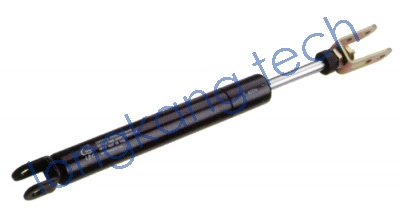

Gas Spring 1011
Description
INSTRUCTIONS FOR INSTALLING GAS STRUTS

 Please take note of the following during installation and use:
 Installation with position rod facing downwards,
 Lateral forces on gas struts are not permissible
 Protect piston rod from dirt, damage and paint
 Do not undertake any mechanical work on the gas strut
 Do not open! High Pressure up tp 200bar!

 HOW DO YOU SELECT THE CORRECT GAS STRUT

  Determine what load you want to lift
  Based on the load you want to carry select the appropriate Newton capaciy and cylinger diameter
  Determine the stroke length required I.e. open lenth minus closed length
  Determine the open and closed lengths to fit in the gas strut
  Select the appropriate end fitting(ball type is most commonly used)

Introduction:

Typical Application:


Dimension:
