INSTRUCTIONS FOR INSTALLING GAS STRUTS
Please take note of the following during installation and use:
Installation with position rod facing downwards,
Lateral forces on gas struts are not permissible
Protect piston rod from dirt, damage and paint
Do not undertake any mechanical work on the gas strut
Do not open! High Pressure up tp 200bar!
HOW DO YOU SELECT THE CORRECT GAS STRUT
Determine what load you want to lift
Based on the load you want to carry select the appropriate Newton capaciy and cylinger diameter
Determine the stroke length required I.e. open lenth minus closed length
Determine the open and closed lengths to fit in the gas strut
Select the appropriate end fitting(ball type is most commonly used)
Introduction:
Typical Application:
Bus and coach luggage compartments / Tractor cab doors and windows

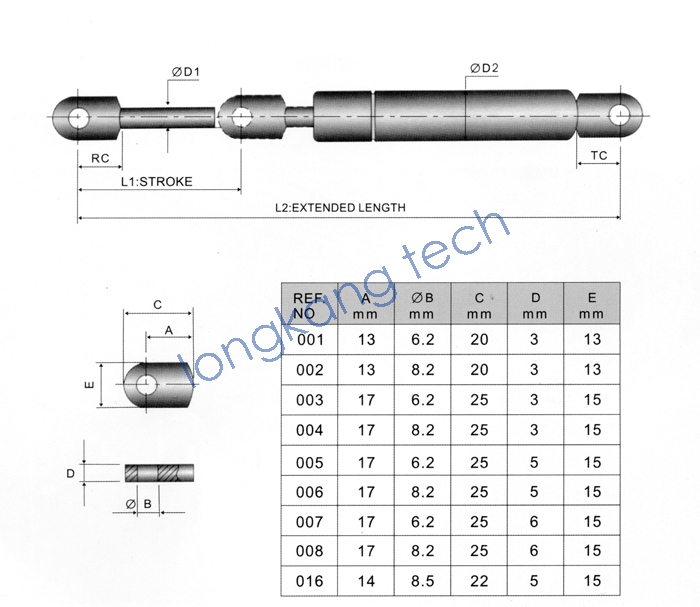

Dimension:
|
øD1 /ø D2 |
L1 |
L2 |
Force F1(N) |
RC/TC |
øD1 /ø D2 |
L1 |
L2 |
Force F1(N) |
RC/TC |
6/15 |
20 |
105 |
50~400 |
001/001 |
10/21 |
95 |
285 |
150~1200 |
006/006 |
|
40 |
145 |
145 |
385 |
|
60 |
185 |
195 |
485 |
|
80 |
225 |
245 |
585 |
|
100 |
265 |
295 |
685 |
|
120 |
305 |
345 |
785 |
|
150 |
365 |
395 |
885 |
|
øD1 /ø D2 |
L1 |
L2 |
Force F1(N) |
RC/TC |
8/18 |
60 |
205 |
100~700 |
006/006 |
|
80 |
245 |
|
100 |
285 |
|
120 |
325 |
|
140 |
365 |
|
160 |
405 |
|
180 |
445 |
|
200 |
485 |
|
220 |
525 |
|
240 |
585 |
