Product
LKBL-42 (Dia. 42mm)
Description
Technical Datas:


Model Voltage No-Load Rated Other
Operating Range Nominal Speed Current Speed Torque Output Sensor Poles Phase
r/min A r/min N.m g.cm W Hall P m
BL42-2450 DC18~28V 24 VDC 5500 0.67 4200 0.13 132.6 57.17 Hall 4 3
BL42-2430 DC18~28V 24 VDC 3000 0.17 2100 0.07 71.4 15.39 Hal 4 3
BL42-1230 DC10.2~14.4V 12VDC 3000 0.33 2050 0.07 71.4 15.03 Hall 4 3
BL42-3680 DC28~36V 36VDC 8500 0.38 6538 0.065 66.3  44.50 Hall 4 3
BL42-36100 DC28~36V 36VDC 10000 0.25 7692 0.035 35.7 28.19 Hal 4 3

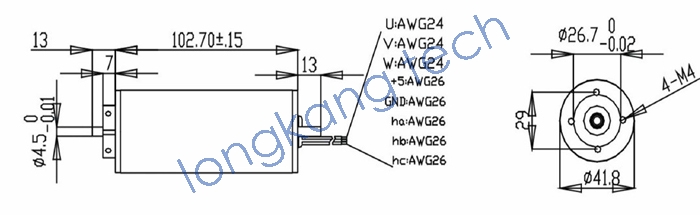

Dimension:



Performance Curves:
